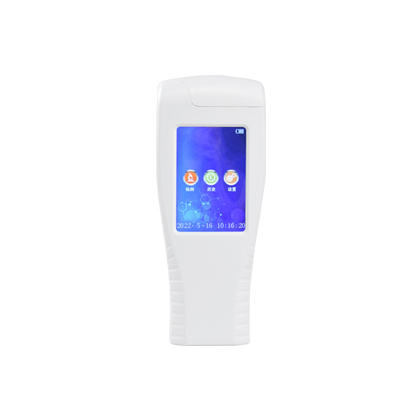

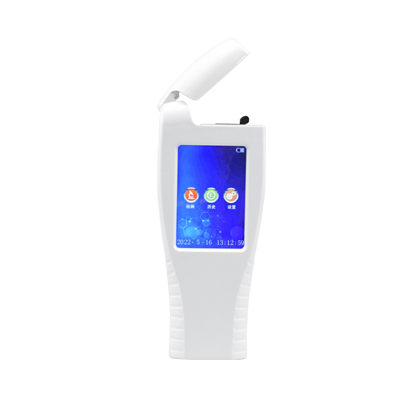

ATP fluorescence detector IN-ATP+
Product Introduction: This device is a newly upgraded product with an Android smart operating system. It uses a biochemical reaction method to detect ATP content. The ATP fluorescence detector is based on the firefly bioluminescence principle, utilizing a "luciferase-luciferin system" to rapidly detect adenosine triphosphate (ATP). The ATP swab contains a reagent that can lyse cell membranes, releasing intracellular ATP. This ATP reacts with a specific enzyme in the reagent, producing light. The luminescence value is then detected by a fluorometer. The number of microorganisms is directly proportional to the luminescence value. Since all living cells contain a constant amount of ATP, the ATP content clearly indicates the amount of microorganisms and other biological residues in the sample, used to assess hygiene conditions.
Instrument Applications: The ATP fluorescence detector is widely used in various industries, including bacterial and microbial detection, pharmaceuticals and healthcare, food safety, market enforcement, surface cleanliness testing, medical and epidemic prevention, water quality and administration, production line hygiene, industrial water treatment, environmental monitoring, customs and entry-exit quarantine, and other law enforcement departments.
Software Platform: The instrument features multiple upload methods including Wi-Fi connectivity, Bluetooth transmission, and data cable connection to a computer. It also includes an online monitoring platform, allowing historical data to be wirelessly uploaded for analysis and statistics. Historical data can be presented as trend charts, pie charts, etc. The platform enables users to conduct hygiene monitoring and plan management. It also supports instant point-to-point uploads to mobile devices in Excel format, facilitating data sharing and reading on smartphones.
Instrument Features:
Practicality – Upper and lower limits can be set according to environmental monitoring needs, enabling rapid data assessment and early warning, and rapid screening of surface cleanliness.
High Sensitivity – 10⁻¹⁵～10⁻¹⁸ mol
Fast Speed – Conventional culture methods take 18-24 hours or more, while ATP only requires a few seconds.
Feasibility – There is a clear correlation between the number of microorganisms and the ATP content within them. By detecting ATP content, the number of microorganisms in the reaction can be indirectly determined.
Operability – Traditional culture methods require trained technicians in a laboratory; however, the rapid ATP cleanliness detection method is very simple to operate, requiring only simple training for general staff to perform on-site.
Better Experience – The test tube features a flexible plug-and-play design, allowing for regular cleaning and long-term use, extending the instrument's lifespan.
Highly Interactive – Highly sensitive Android touch operation and a high-speed data processing chip ensure faster operation and greater stability.
Main Parameters:
1. Operating System: Android system, with Chinese/English switching capability
2. Display: 3.5-inch high-precision graphic touchscreen
3. Processor: ARM Cortex-A7, 1.88GHz, quad-core high-speed chip
4. Detection Accuracy: 1×10⁻¹⁸mol
5. Coliform Bacteria: 1-10⁶ CFU
6. Detection Range: 0 to 999999 RLUs
7. Detection Time: 15 seconds
8. Detection Interference: ±5% or ±5 RLUs
9. Operating Temperature Range: 5℃ to 40℃
10. Operating Humidity Range: 20-85%
11. ATP Recovery Rate: 90-110%
12. Detection Modes: RLU, Coliform Bacteria Screening
13. Data Storage: 4GB memory, capable of storing 100,000 data entries
14. Optional upper and lower limits can be set.
15. Automatic judgment of pass/fail. 16. Automatic pass rate calculation
17. Built-in self-calibrating light source
18. 30-second self-test upon startup
19. Equipped with a miniUSB interface for uploading results to a PC
20. Features Wi-Fi and Bluetooth transmission capabilities for wirelessly uploading results to a data analysis platform
21. Includes a dedicated software driver USB flash drive instead of a traditional CD-ROM
22. Instrument dimensions (W×H×D): 188 mm×77 mm×37 mm
23. Uses a rechargeable lithium battery (3.7V 3000mAh), eliminating the need for battery replacement
24. Standby time (20℃): 6 months
25. Includes Chinese and English operation manuals
26. Stable liquid luciferase
27. Moistened integrated collection swab

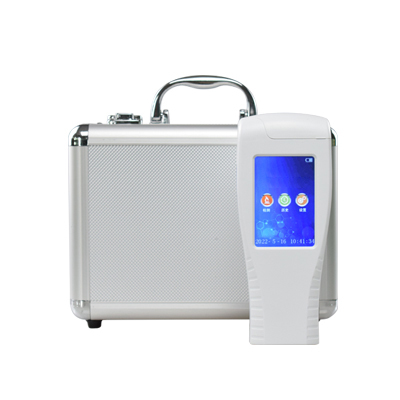

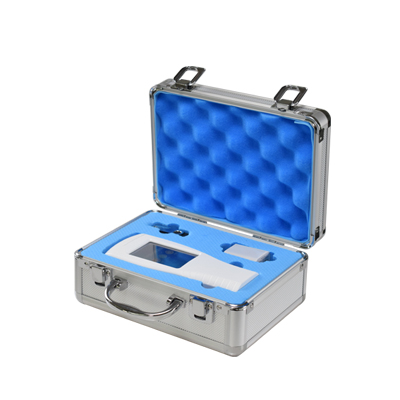

Random configuration: ATP fluorescence detector (handheld) main unit, aluminum alloy carrying case, driver USB flash drive, PC data cable, data analysis software, Chinese operation manual
