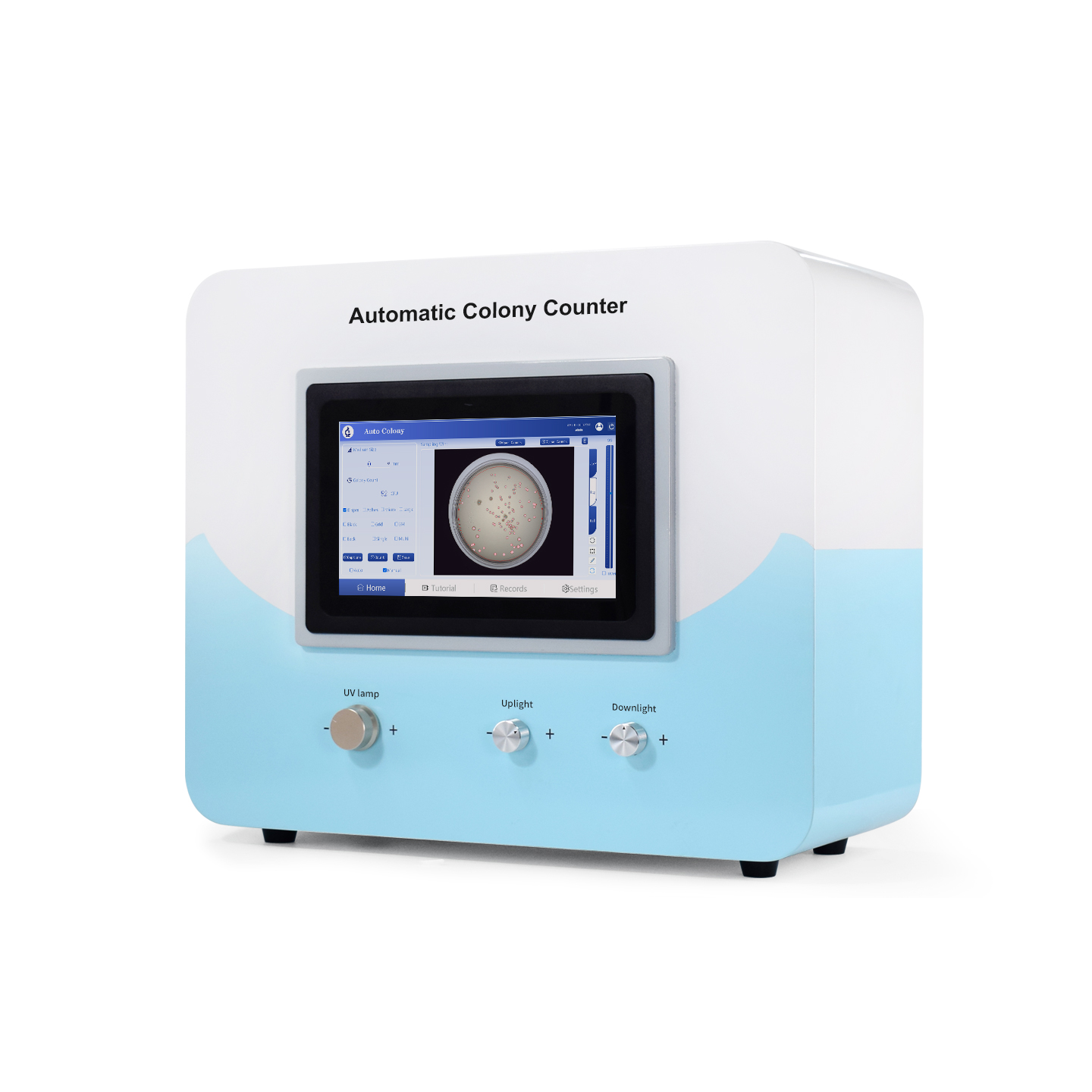

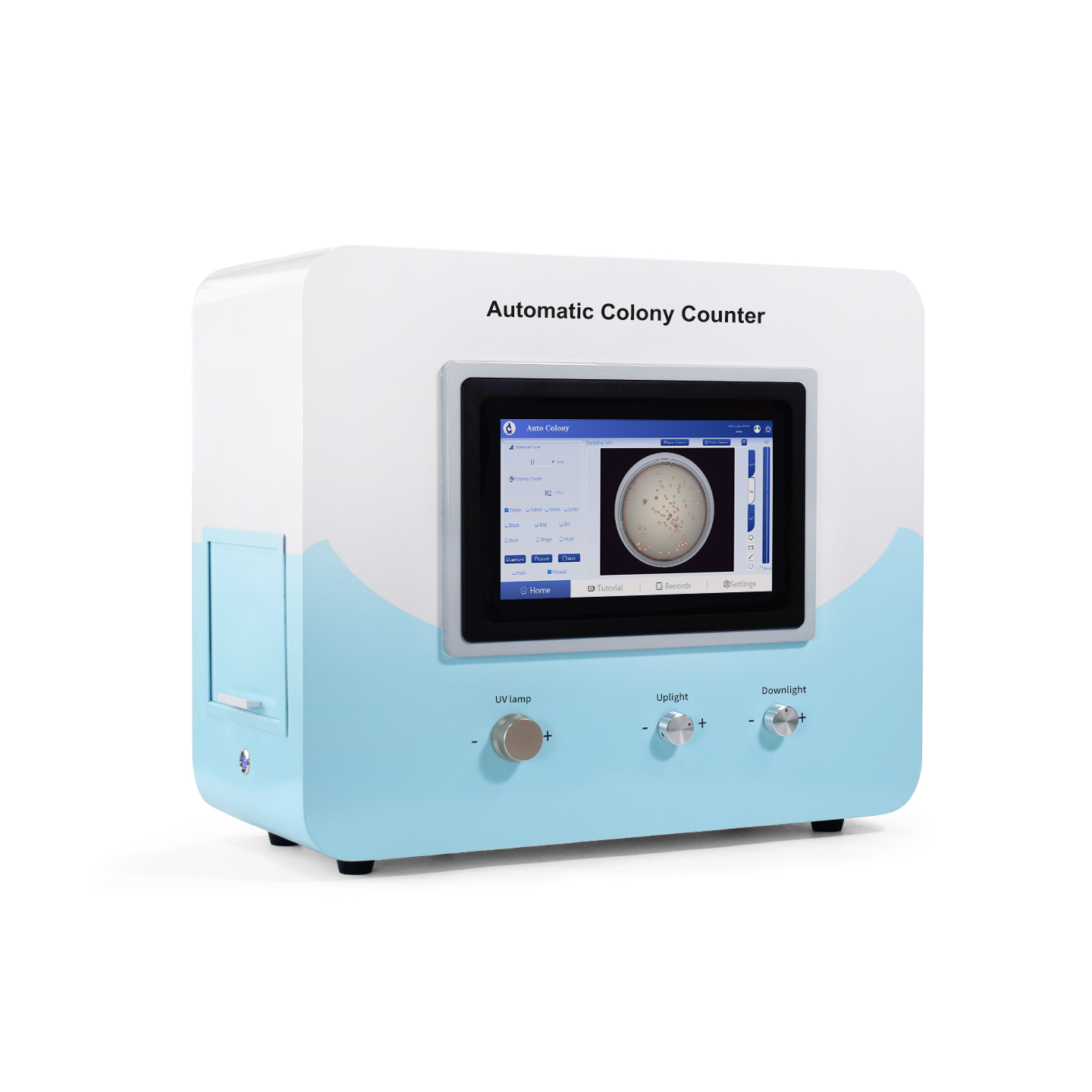

IN-J200 Fully Automated Colony Counter
I. Product Introduction:
This product is an automated colony counting instrument integrating image acquisition, data processing, and statistical analysis. It is widely used in colony counting in the food, pharmaceutical, cosmetic, environmental monitoring, medical and health, and scientific research fields. The instrument employs advanced digital image processing technology and features fluorescent bacteria identification and sterilization functions. It can achieve rapid, accurate, and fully automated counting of colonies in petri dishes, significantly improving experimental efficiency and reducing human error.
II. Performance Indicators
1. Imaging Device
Fully enclosed darkroom, eliminating stray light interference from the external environment.
360° ring-shaped four-color LED visible light, providing shadowless soft illumination.
Built-in 254nm UV lamp for sterilization and mutagenesis of the chamber.
Built-in 366nm UV lamp to excite colony fluorescence, meeting the needs of Escherichia coli counting and green fluorescent protein observation.
Adjustable brightness and on/off control of upper and lower light sources.
16-megapixel ultra-high-definition color camera.
Detectable smallest colony: 0.1mm
Error rate: ≤±10%
Suitable petri dish diameter: Standard 90-110mm (smaller petri dishes should be placed in the center of the aperture).
2. Software Functions
1) One-click statistics:
Dispersed Bacteria One-Click Count: Quickly counts colonies with relatively clear edges and a dispersed distribution.
Adhesive Bacteria One-Click Count: Suitable for quickly counting colonies with a single background color, adhering to each other, and blurred edges.
Micro Bacteria One-Click Count: Suitable for quickly counting micro colonies with a diameter of 0.1mm-0.5mm.
3M (PetriFilm™) One-Click Count: Quickly counts colonies growing on 3M paper.
Black Grid (Compact) Dry™ One-Click Count: Quickly counts colonies growing on black-lined paper.
RIDA™ One-Click Count: Quickly counts colonies growing on filter paper.
Background Similar Bacteria One-Click Count: Suitable for quickly counting colonies whose color is similar to the culture medium color.
Large Colony One-Click Count: Suitable for quickly counting colonies with a diameter greater than 2mm.
Single-Color Bacteria One-Click Count: Quickly counts single-color or multi-color colonies by selecting one color.
Multi-Color Bacteria One-Click Count: Allows multiple clicks on the target colony to automatically extract the corresponding color, automatically segmenting all colonies of the same color within the selected area. Suitable for counting specific-color colonies among multi-color bacteria.
2) System Display:
Display: 15.6-inch large touchscreen, resolution: 1920*1080, supports external mouse operation.
System: Win10 64-bit, 256G storage, no external computer required.
3) Auxiliary Statistical Tools
Correction: Threshold adjustment allows for correction based on one-click statistics.
Selection Tools: Circle, Rectangle, Brush
Colony Size Classification: After statistics are completed, each colony is displayed in 25 categories based on its outline size.
4) Data Security and Management
Multi-user login system; each account generates independent data, which is permanently stored.
Statistical results can be exported in PDF format; original data cannot be altered.
Built-in bilingual display (Chinese and English), one-click switching.
5) Light Source Management
This series of fully automatic colony counters is equipped with a flexible upper and lower dual light source system. Users can freely adjust the light source using knobs to obtain the best imaging effect according to different petri dish types, colony characteristics, and background conditions.
Specific functions include:
Independent Control: The upper and lower light sources can be turned on or off independently using knobs.
Brightness Adjustment: The brightness of each light source can be freely adjusted to adapt to different contrast requirements.
Mode Switching: Users can freely switch between various lighting modes such as "upper light only," "lower light only," and "both upper and lower lights on simultaneously."
6) Automatic Calibration
The instrument has undergone precise calibration at the factory. Under normal circumstances, the system can automatically complete the calibration based on preset camera parameters (such as camera model, lens focal length, working distance, etc.). Users do not need to perform any additional operations in daily use; the software can directly perform accurate dimensional measurements. The operation is simple, ensuring consistent and efficient results.
